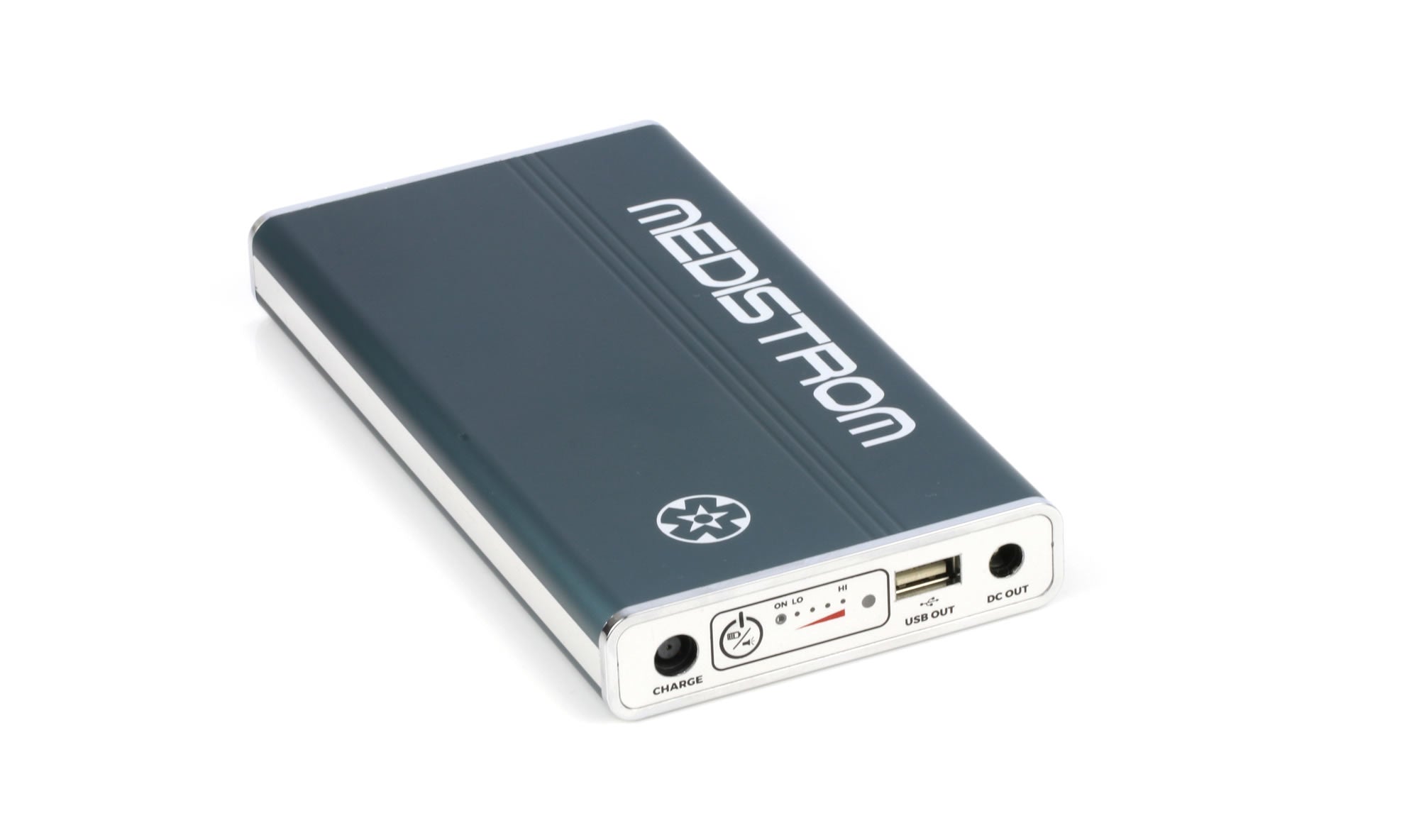

Medistrom Pilot-24 Lite Backup Battery

The smallest backup and travel CPAP battery on the market that makes a great accessory to your sleep therapy at home or while travelling. Supports the most popular 24V CPAP devices for 1-2 nights with no heated settings.

What's Included:

• Medistrom Pilot-24 Lite Backup Battery
• Manual
• Quick Start Guide
• DC Cables: Airsense 10 DC Output Cable, Airmini DC Output Cable, Charging Adapter Cable for Airmini

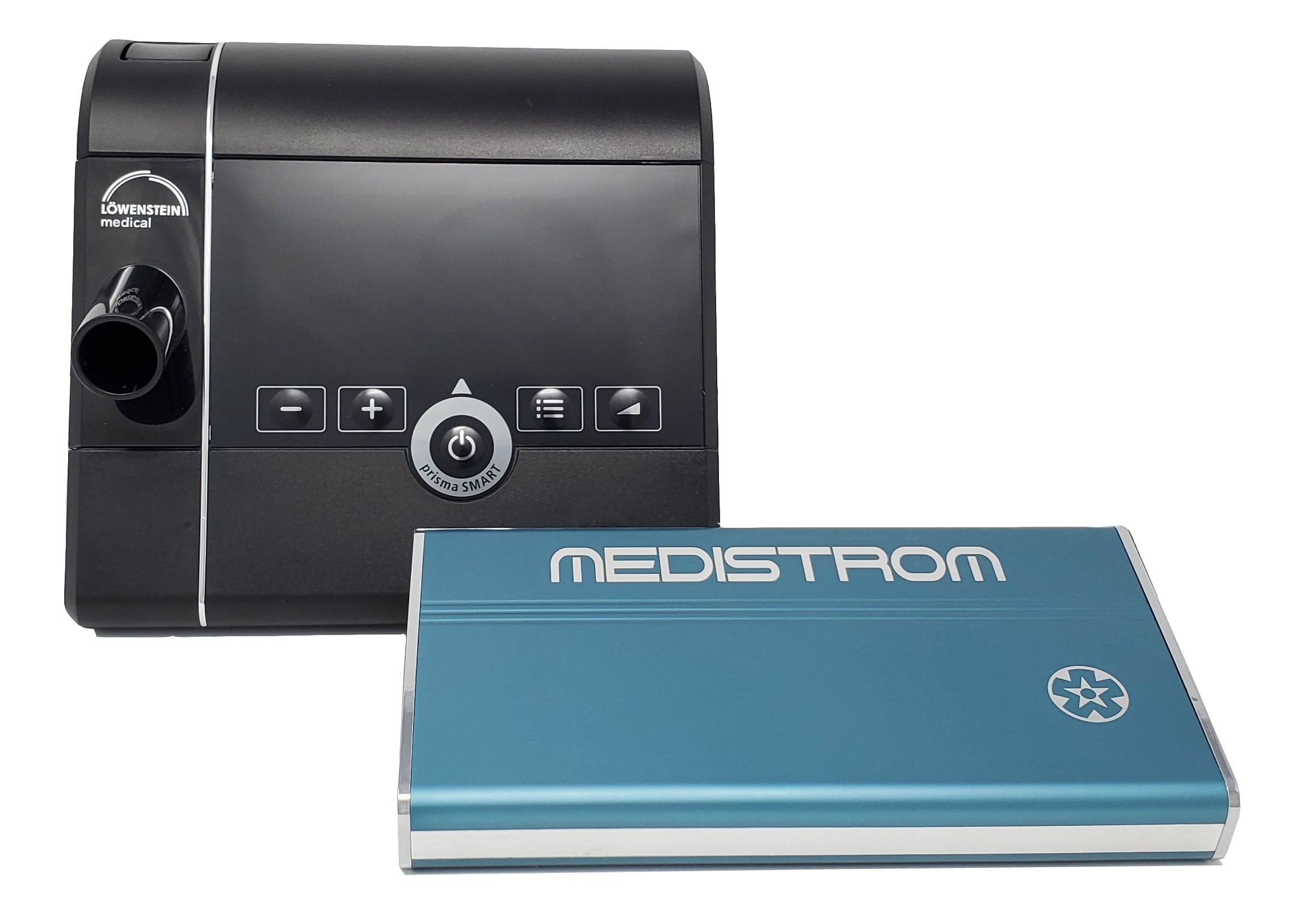

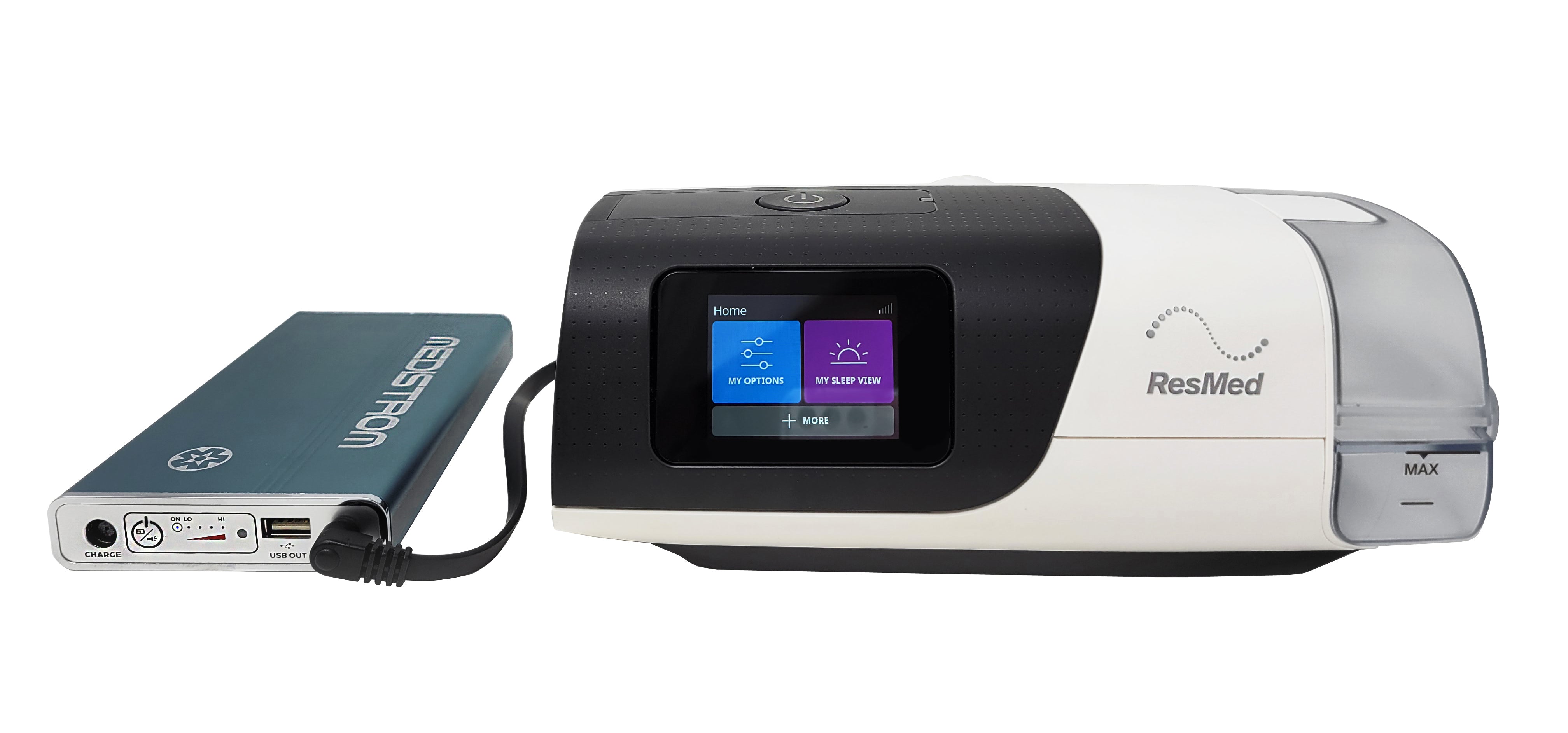

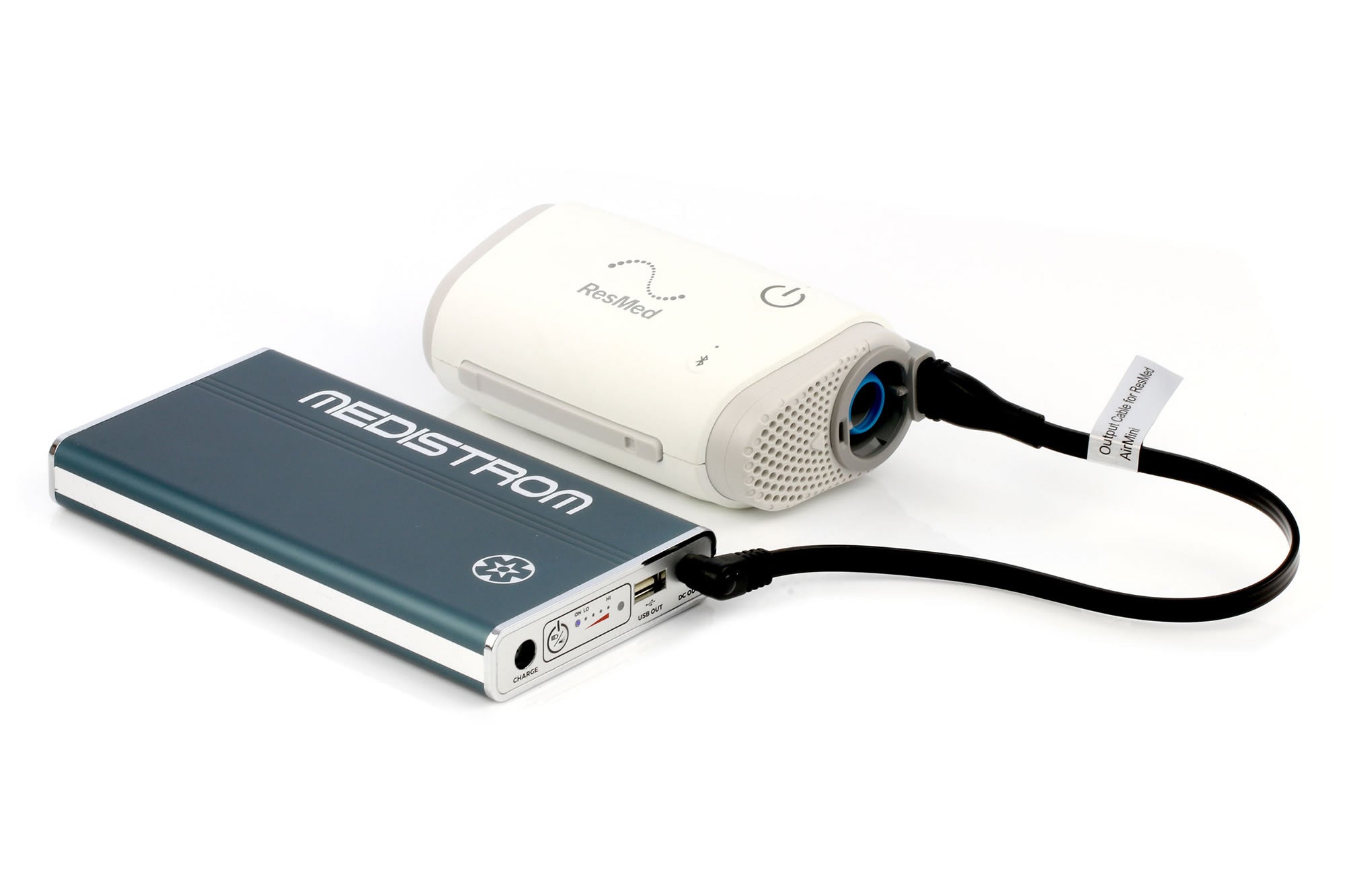

Please note: The compatible devices are the ResMed AirSense 10/Airmini/Airsense 11*/S9 Series*, Respironics Dreamstation Go*, 3B Medical Luna*/Luna G3, Apex Medical iCH*, Lowenstein Prisma Series*, SmartMed iBreeze*

Listed items with an asterisk (*) require a separate cable kit is required.

• Lasts 8 hours minimum on an average pressure of 10, with no humidifier, no heated tubing, or excessive mask leak and upwards to 16 hours depending on your pressure. Please ensure that all your heated settings are turned off to get the longest runtime possible for your settings.


• Charges and outputs DC voltage using machine specific cables. No conversion from DC to AC shortening battery runtime and increasing battery size.

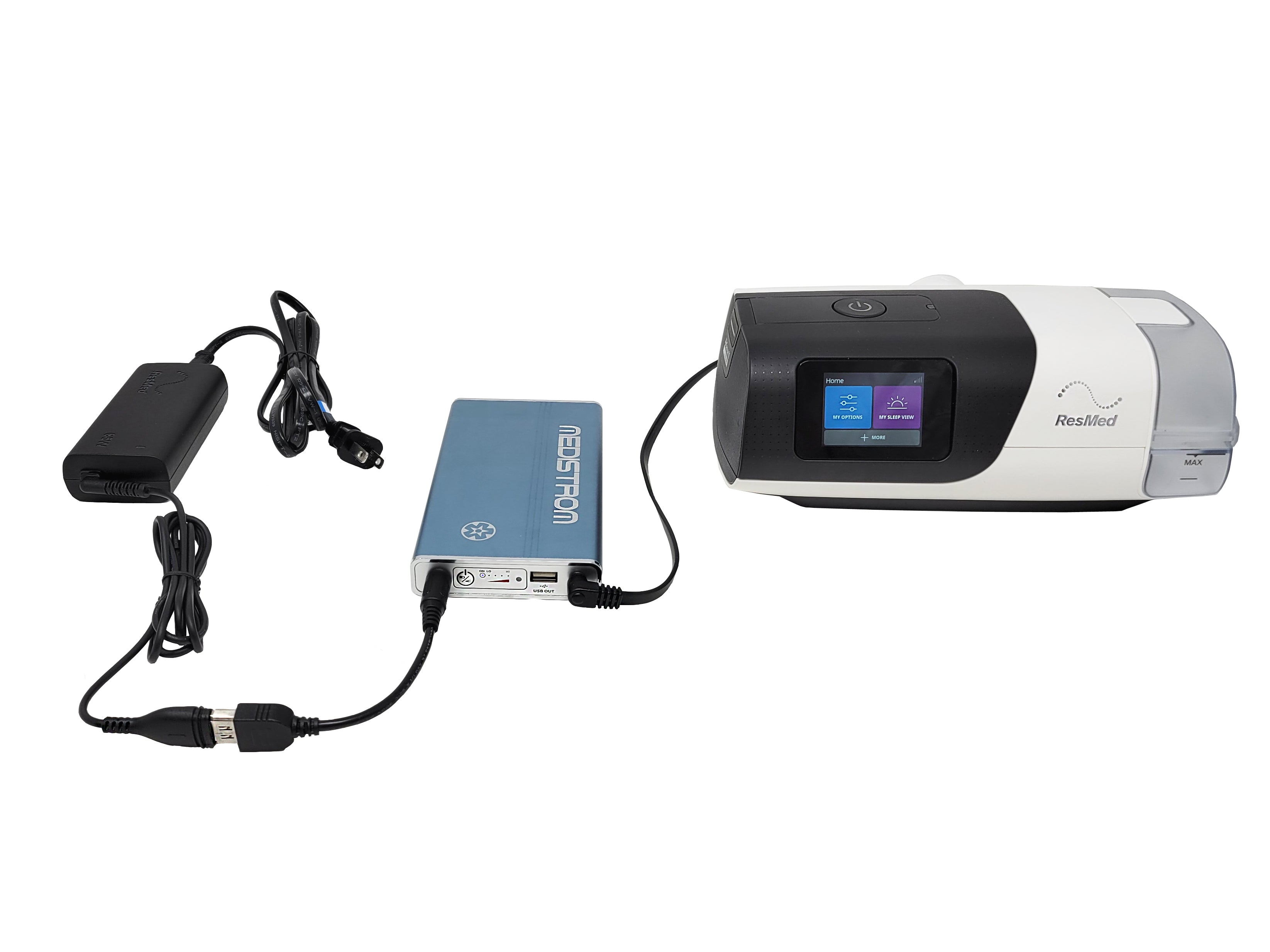

• Plug and play. The battery recharges using the AC wall adapter for most supported PAP devices. No need to carry heavy and confusing adapters while travelling.

Dimensions 6.42 x 3.51 x 4.14 cm

Weight: 0.59 kg

Warranty: 1 year

Rated Input: 24V, 60W (NORMAL), 90W (MAX)

Rated Output: DC 24V, 3.75A

USB Out: 5V, 2.5A

Life Span: Over 500 full charge/discharge cycles

Dimensions: 17cm x 9cm x 2cm (6.7" x 3.5" x 0.8"), 560g (1.3lbs)

Power Gauge: 4 stage Charge Level Indicator Lights

Recharge time: 2-3 hours (7 to 9 hours via the ResMed AirMini AC Adapter)

Housing Material: Aluminum
